Specification
| Product | Pressure transmitter |
| Model | SUP-P300 |
| Measure range | -0.1…0/0.01…60Mpa |
| Pressure type | Gauge pressure, adiabatic pressure and sealed pressure |
| Accuracy | 0.5% F.S; 0.2%F.S,0.25%F.S, optional |
| Output signal | 4...20mA; 1...5V; 0...10V; 0...5V; RS485 |
| Temperature compensation | -10...70 ℃ |
| Working temperature | -20...85 ℃ |
| Medium temperature | -20...85 ℃ |
| Storage temperature | -40...85 ℃ |
| Overload pressure | 0.035...10MPa（150%FS）10...60MPa（125%FS） |
| Long-term stability | ± 0.2%FS/year |
| Power supply | 10-32V (4...20mA);12-32V (0...10V);8-32V (RS485) |
Introduction

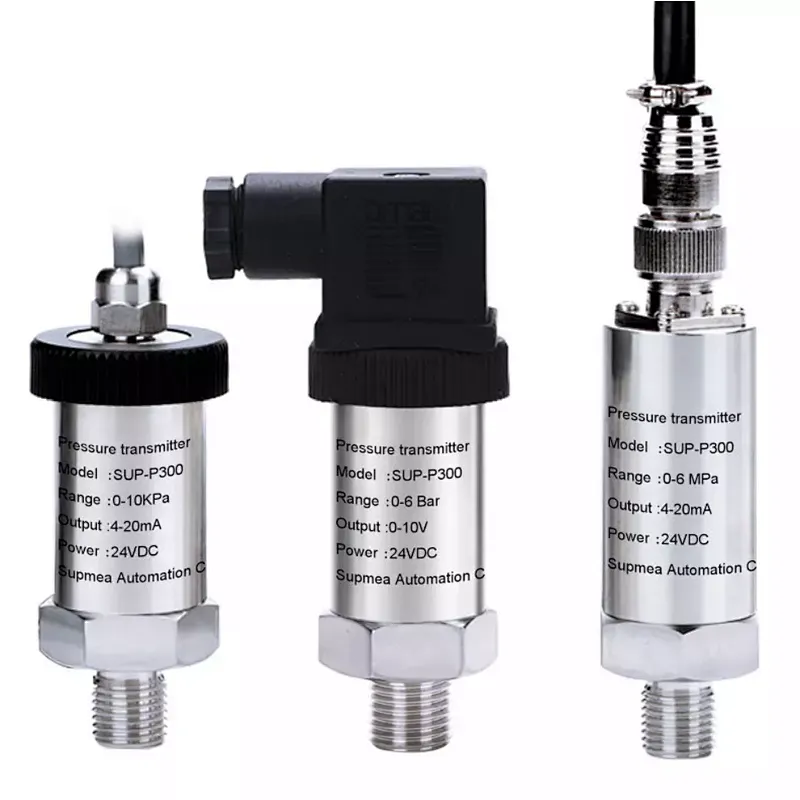

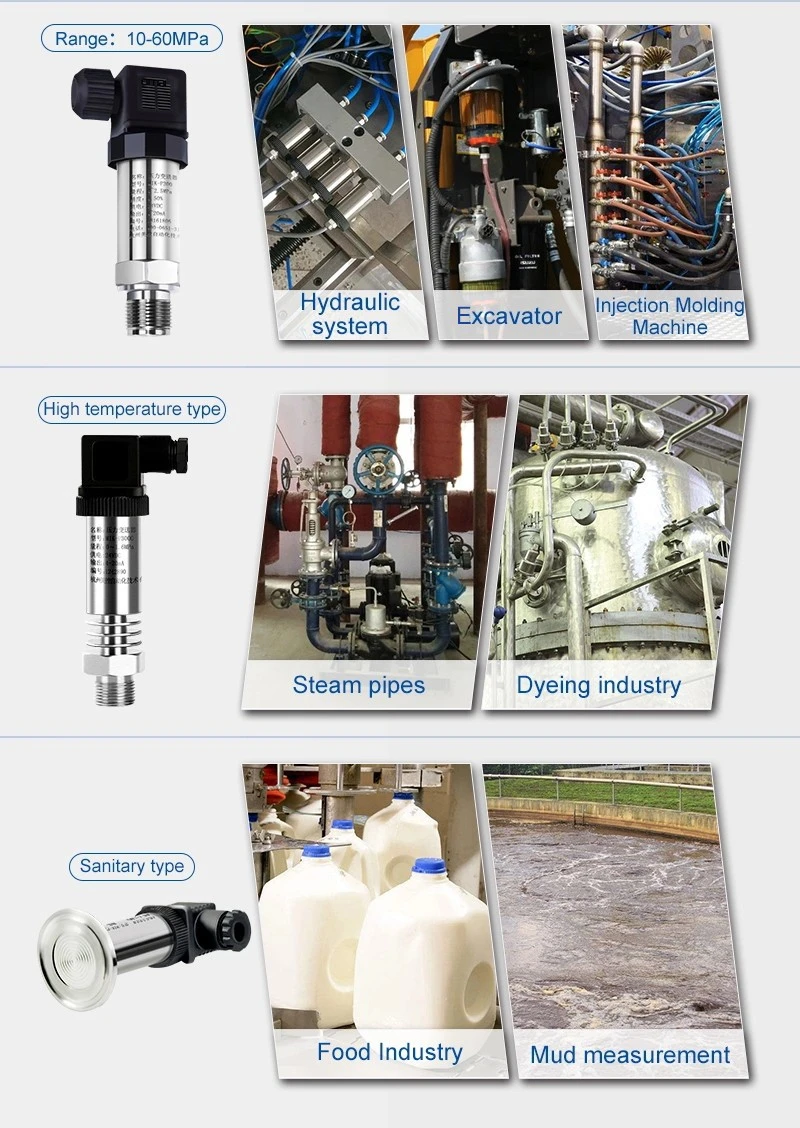

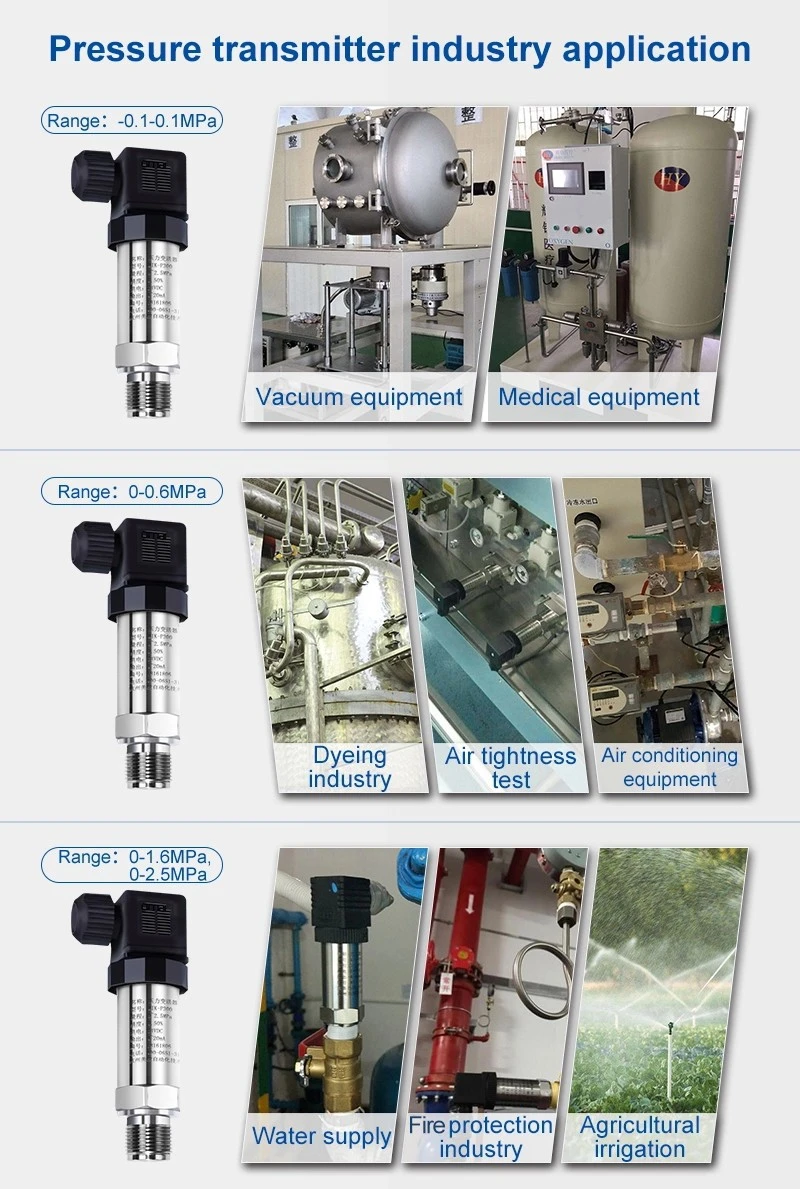

SUP-P300 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output. P300 series is widely applied in pressure measurement for aviation, aerospace, automobile, medical treatment equipment, HVAC etc
